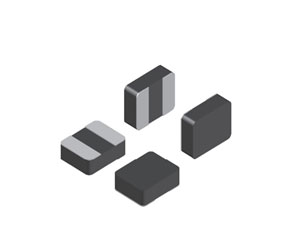

小型化一体成型电感IM2520系列
大电流和低损耗的金属材料一体压铸
高性能（Isat）由金属粉尘芯实现，低损耗由低Rdc实现
闭合磁路设计减少泄漏磁通量
乙烯热喷涂，更好的表面致密性
工作温度：-55℃～+125℃
适用通信设备、平板电脑、智能手机、便携式游戏机、智能穿戴、Wi-Fi模块等
图文详情
规格参数表
产品型号 | 尺寸(LxWxT)mm | 电感量UH | 公差 | 直流电阻Ω | 饱和电流 | 温升电流 |
IM252010SR24MBCA | 2.5*2.0*1.0 | 0.24 | 20% | 0.012 | 8.5 | 6.7 |
IM252010SR33MBCA | 2.5*2.0*1.0 | 0.33 | 20% | 0.013 | 7.6 | 6.5 |
IM252010SR47MBCA | 2.5*2.0*1.0 | 0.47 | 20% | 0.015 | 6.9 | 6.1 |
IM252010S1R0MBCA | 2.5*2.0*1.0 | 1.0 | 20% | 0.025 | 5.4 | 4.7 |
IM252010S2R2MBCA | 2.5*2.0*1.0 | 2.2 | 20% | 0.062 | 3.3 | 2.4 |
IM252010S4R7MBCA | 2.5*2.0*1.0 | 4.7 | 20% | 0.16 | 2.6 | 2.0 |
IM252012SR24MBCA | 2.5*2.0*1.2 | 0.24 | 20% | 0.01 | 9.3 | 8.0 |
IM252012SR33MBCA | 2.5*2.0*1.2 | 0.33 | 20% | 0.011 | 8.3 | 6.8 |
IM252012SR47MBCA | 2.5*2.0*1.2 | 0.47 | 20% | 0.013 | 7.5 | 6.5 |
IM252012S1R0MBCA | 2.5*2.0*1.2 | 1.0 | 20% | 0.035 | 5.6 | 4.0 |
IM252012S2R2MBCA | 2.5*2.0*1.2 | 2.2 | 20% | 0.055 | 3.8 | 3.0 |
IM252012S4R7MBCA | 2.5*2.0*1.2 | 4.7 | 20% | 0.15 | 2.4 | 1.8 |
IM252010S220MBCA | 2.5*2.0*1.0 | 22 | 20% | 1.1 | 1.1 | 0.85 |
IM252010S100MBCA | 2.5*2.0*1.0 | 10 | 20% | 0.5 | 1.55 | 1.05 |
IM252010S3R3MBCA | 2.5*2.0*1.0 | 3.3 | 20% | 0.086 | 2.8 | 2.5 |
IM252010S6R8MBCA | 2.5*2.0*1.0 | 6.8 | 20% | 0.27 | 2.4 | 1.6 |
IM252010S1R5MBCA | 2.5*2.0*1.0 | 1.5 | 20% | 0.045 | 4.3 | 3.4 |
IM252010SR22MBCA | 2.5*2.0*1.0 | 0.22 | 20% | 0.012 | 8.6 | 6.8 |
IM252010SR68MBCA | 2.5*2.0*1.0 | 0.68 | 20% | 0.023 | 5.9 | 5.6 |
IM252012S100MBCA | 2.5*2.0*1.2 | 10 | 20% | 0.33 | 1.6 | 1.2 |
IM252012S3R3MBCA | 2.5*2.0*1.2 | 3.3 | 20% | 0.08 | 3.0 | 2.3 |
IM252012S1R5MBCA | 2.5*2.0*1.2 | 1.5 | 20% | 0.044 | 4.5 | 3.7 |
IM252012S6R8MBCA | 2.5*2.0*1.2 | 6.8 | 20% | 0.245 | 2.0 | 1.6 |
IM252012SR22MBCA | 2.5*2.0*1.2 | 0.22 | 20% | 0.009 | 9.6 | 8.2 |
IM252012SR68MBCA | 2.5*2.0*1.2 | 0.68 | 20% | 0.017 | 6.5 | 6.3 |
IM252012SR10MBCA | 2.5*2.0*1.2 | 0.1 | 20% | 0.006 | 13.5 | 12 |
IM252012SR15MBCA | 2.5*2.0*1.2 | 0.15 | 20% | 0.007 | 13.0 | 11.5 |
IM252012SR82MBCA | 2.5*2.0*1.2 | 0.82 | 20% | 0.019 | 6.5 | 5.8 |
TC252055SR22MBCA | 2.5*2.0*5.5 | 0.22 | 20% | 0.023 | 4.8 | 6.5 |
TC252055SR47MBCA | 2.5*2.0*5.5 | 0.47 | 20% | 0.042 | 3.5 | 5.5 |
TC252075S2R2MGCA | 2.5*2.0*7.5 | 2.2 | 20% | 0.078 | 2.6 | 2.3 |
TC252075S100MGCA | 2.5*2.0*7.5 | 10 | 20% | 0.487 | 1.1 | 1.1 |
IM252008SR47MBCA | 2.5*2.0*0.8 | 0.47 | 20% | 0.022 | 6.0 | 6.5 |
IM252008S1R0MBCA | 2.5*2.0*0.8 | 1.0 | 20% | 0.034 | 4.5 | 4.3 |
IM252008S1R5MBCA | 2.5*2.0*0.8 | 1.5 | 20% | 0.064 | 3.5 | 3.4 |
IM252008S2R2MBCA | 2.5*2.0*0.8 | 2.2 | 20% | 0.069 | 3.0 | 3.0 |
IM252008S3R3MBCA | 2.5*2.0*0.8 | 3.3 | 20% | 0.15 | 2.5 | 2.5 |
TC252008S4R7MBCA | 2.5*2.0*0.8 | 4.7 | 20% | 0.18 | 1.9 | 2.0 |
TC252008S100MBCA | 2.5*2.0*0.8 | 10 | 20% | 0.5 | 1.1 | 1.4 |
IM252010S2R2MBDZ | 2.5*2.0*1.0 | 2.2 | 20% | 0.062 | 3.7 | 2.7 |
IM252010S3R3MBDZ | 2.5*2.0*1.0 | 3.3 | 20% | 0.086 | 3.1 | 2.8 |
IM252010S4R7MBDZ | 2.5*2.0*1.0 | 4.7 | 20% | 0.16 | 2.9 | 2.2 |
IM252010S220MBDZ | 2.5*2.0*1.0 | 22 | 20% | 1.1 | 1.3 | 0.94 |
IM252012S1R0MBDZ | 2.5*2.0*1.2 | 1.0 | 20% | 0.035 | 6.2 | 4.5 |
IM252012S1R5MBDZ | 2.5*2.0*1.2 | 1.5 | 20% | 0.044 | 4.9 | 4.1 |
IM252012S3R3MBDZ | 2.5*2.0*1.2 | 3.3 | 20% | 0.08 | 3.4 | 2.6 |
IM252012S4R7MBDZ | 2.5*2.0*1.2 | 4.7 | 20% | 0.15 | 2.5 | 2.0 |
IM252012S100MBDZ | 2.5*2.0*1.2 | 10 | 20% | 0.33 | 1.8 | 1.4 |
